Now available through Redline Sportscars, this comprehensively engineered turbocharged MX-5 represents a properly executed fast road build — developed as a complete package rather than simply a power upgrade.

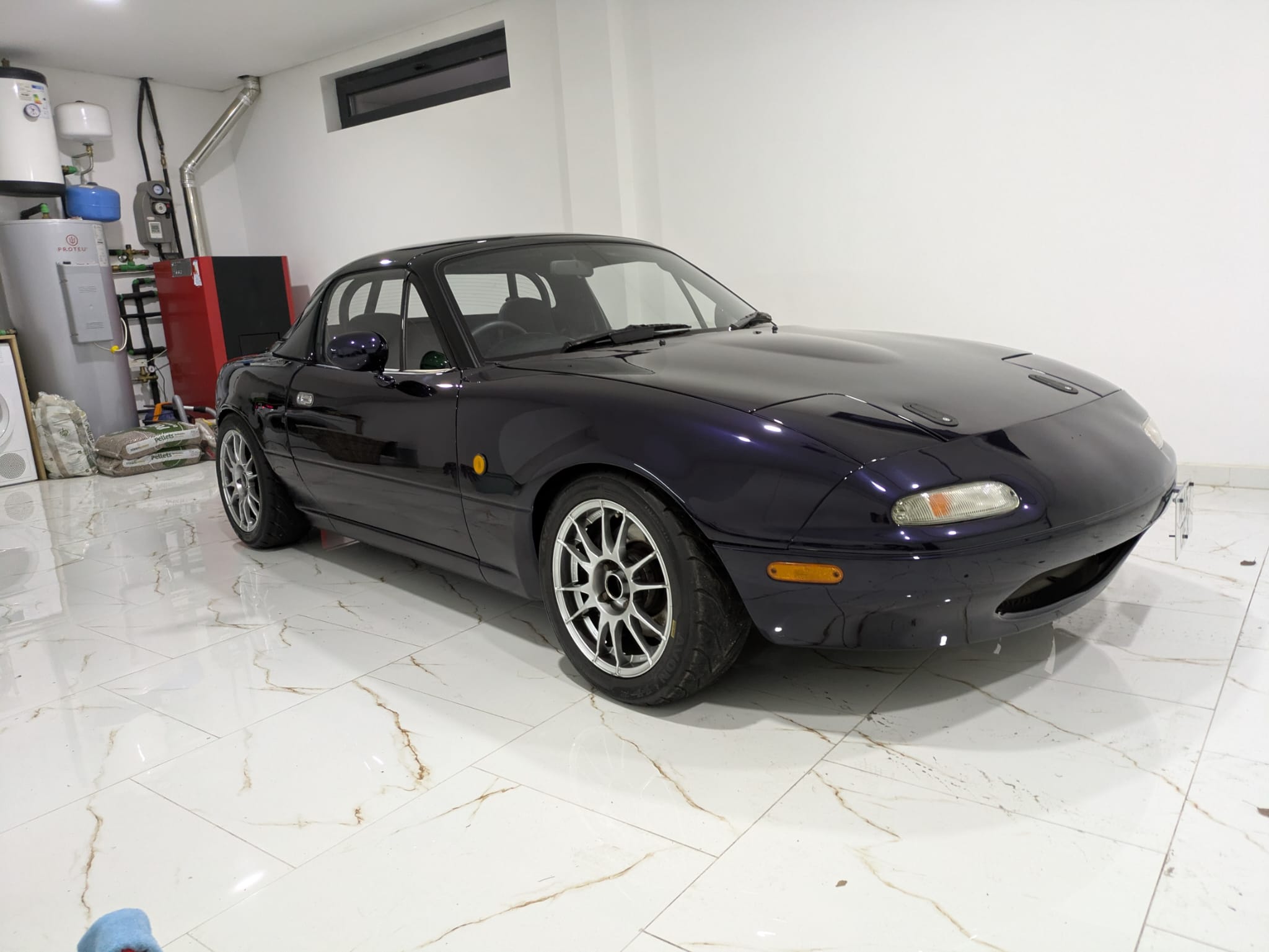

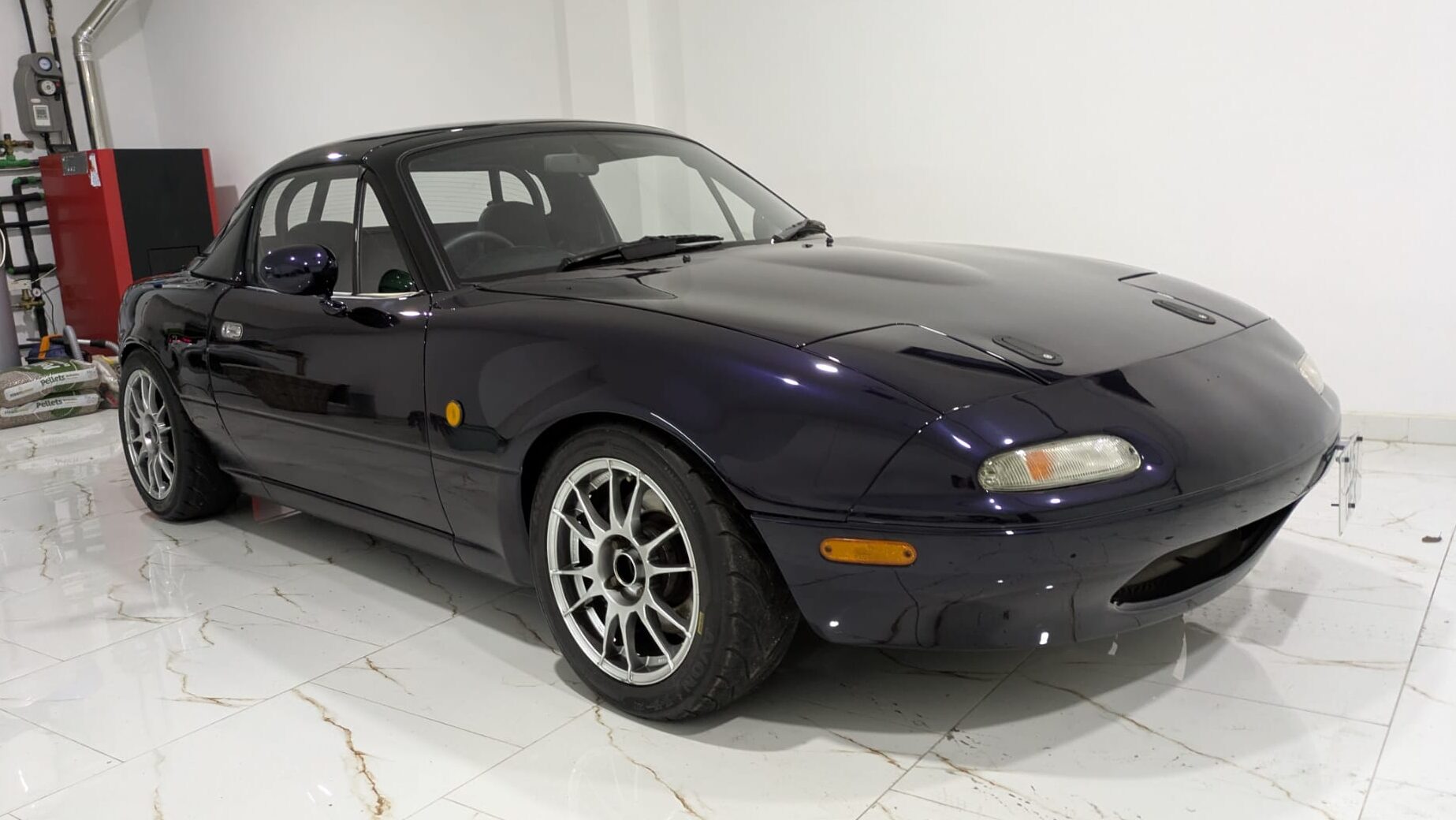

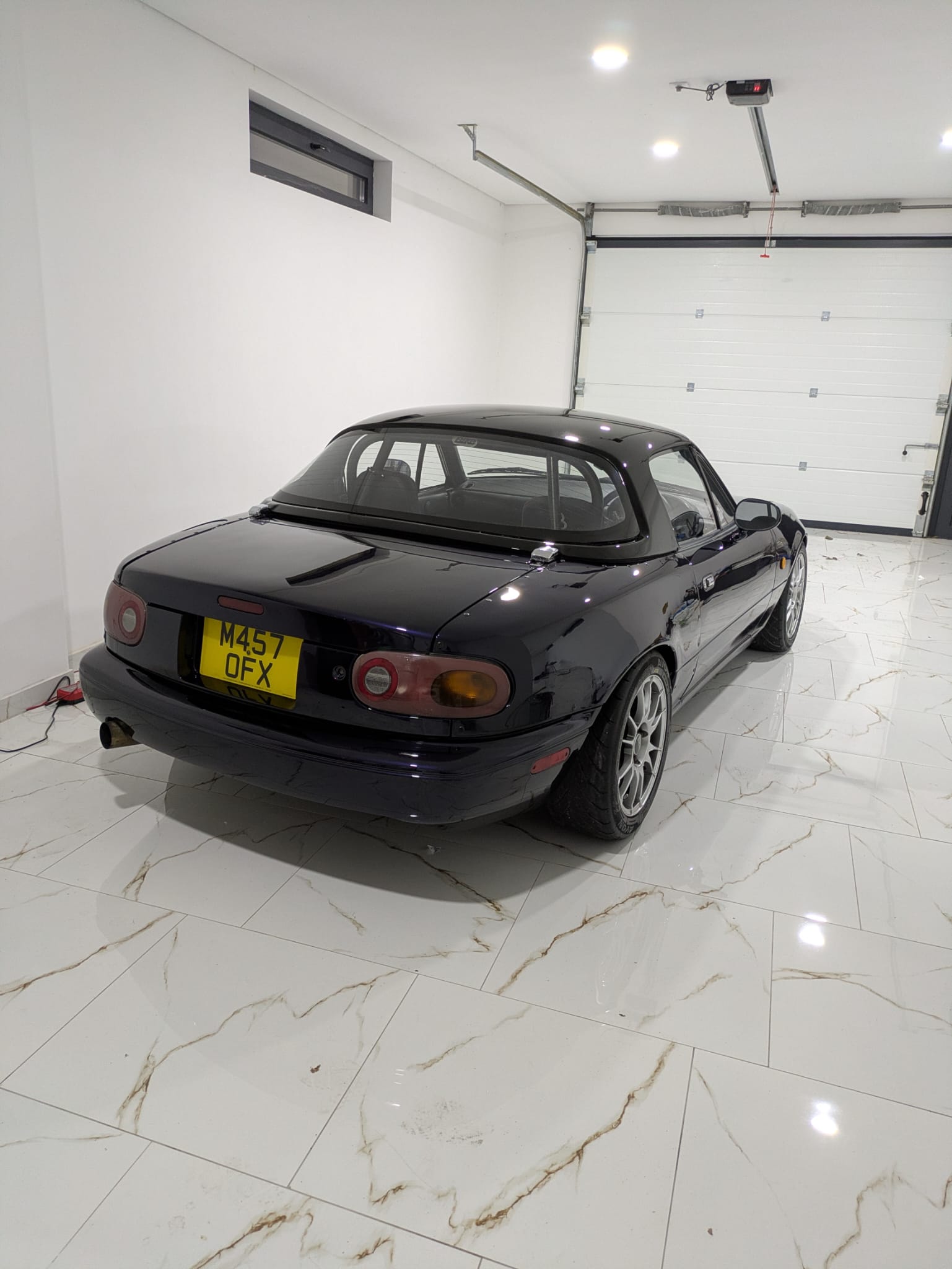

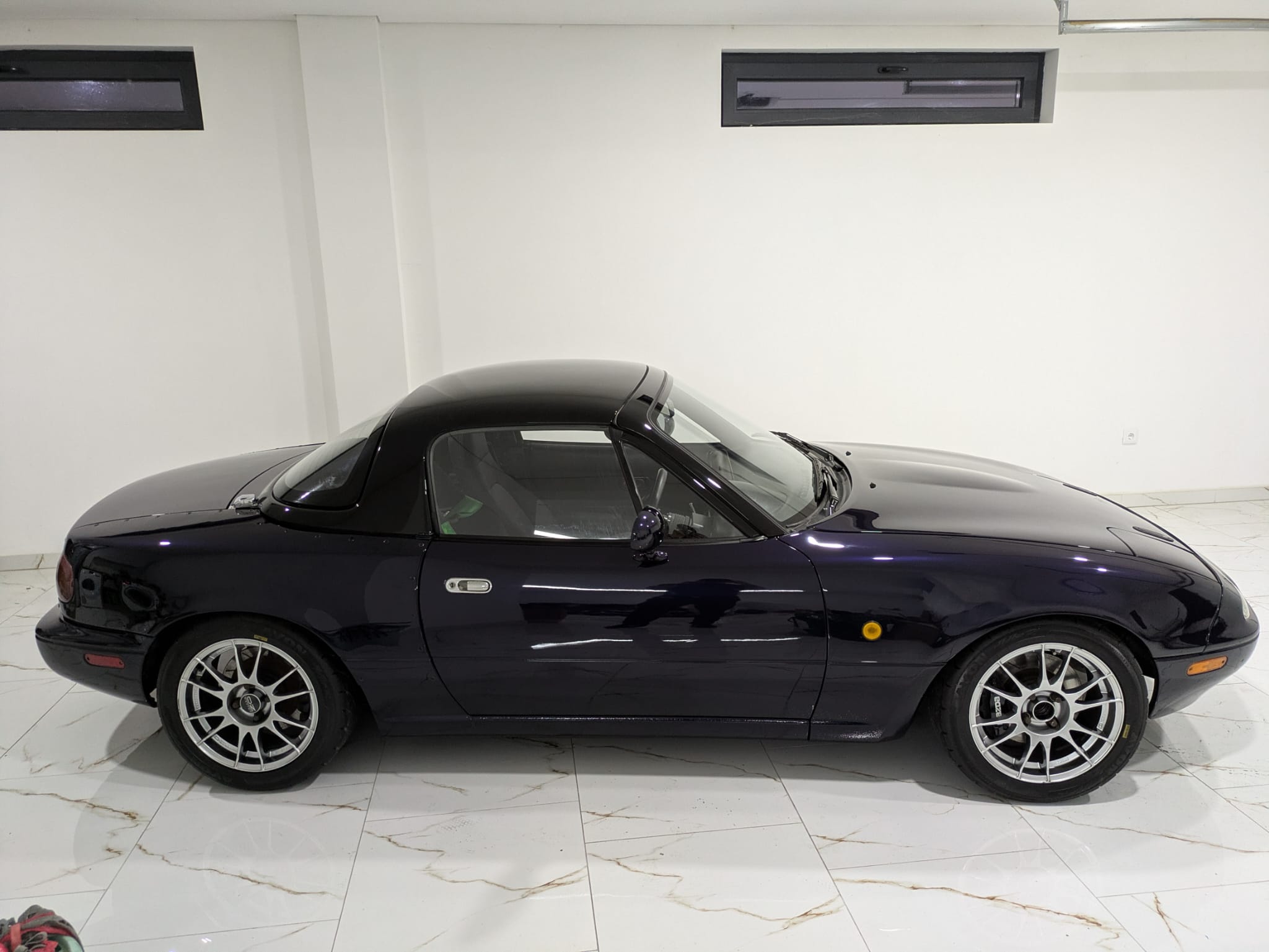

Finished in A5 Satellite Blue with gloss black hard top and detailing, sitting on OZ Ultraleggeras, the car presents with a clean, understated aesthetic. Underneath, however, is a serious specification.

Engine & Turbo System

The proven 1.8 BP engine has been turbocharged via a TIG-welded log manifold and breathes through a full 3” fabricated exhaust system with rear silencer (98db compliant).

Supporting modifications have been carried out correctly to ensure reliability and consistency:

• Bosch EV14 550cc injectors

• Walbro 190lph in-tank fuel pump

• Larger throttle body

• AN oil and water feed/return lines for turbo

• Boost regulator

• Front mount intercooler with proper ducting

• Fabricated charge pipework

• Mishimoto aluminium radiator

• Cooling re-route

• Thermostatic oil plate

• 13-row oil cooler with ducting

• BOFI uprated clutch

Engine management is via a Motorsport Electronics ECU, professionally mapped to produce 190hp at the wheels on wastegate spring pressure. The delivery is strong, responsive and highly usable — with excellent mid-range torque.

Transmission & Differential

• 5-speed gearbox fitted

• 6-speed gearbox supplied with the vehicle

• 4.1 ratio differential

• Type 1 Torsen limited slip differential

The shorter 4.1 final drive complements the turbo torque curve perfectly, delivering urgent in-gear acceleration while maintaining drivability.

Chassis & Geometry

Significant attention has been given to handling and geometry:

• HSD coilovers

• Steering rack riser blocks (bump steer correction)

• Whiteline front anti-roll bar with adjustable drop links

• Rear anti-roll bar removed

• Rear lower arms converted to spherical bearings at the hub

• Rear upper hub bush converted to spherical

• Front strut brace

• MR2 rear hub flange conversion (not fitted)

The spherical rear conversions are a notable upgrade, maintaining geometry under load and providing increased rear stability and traction when driven hard.

Braking System

The braking system has been upgraded to match performance levels:

• Bias-adjustable pedal box (driver adjustable)

• Porsche Boxster front calipers

• G60 front discs

• CL6 and road pad options

• Freakyparts rear sport disc conversion

• Mintex 1144 rear pads

• Bronze rear caliper bushes

• Braided brake hoses

Pedal feel is firm and adjustable, with excellent consistency.

Interior

Driver-focused and purposeful:

• Fixed-back bucket seat (driver)

• Genuine Takata harness

• Roll bar

• Motamec Prototipo-style steering wheel

• Sterling wheel spacer

• Boost pressure, AFR, oil temperature and oil pressure gauges

• Radio delete

Exterior

• A5 Satellite Blue paintwork

• Gloss black hard top, ducktail and windscreen surround

• Firefly rear overfenders (body colour)

• Firefly ducktail (included, not fitted)

• OZ Ultraleggera 15×7 ET37

• 20mm spacers front and rear

• Offset number plate

The overall stance is balanced and cohesive, retaining the character of the original car while subtly enhancing its presence.

Summary

A genuinely well-engineered turbo MX-5 producing 190whp with supporting modifications across fuelling, cooling, braking and chassis systems.

A fast, usable and mechanically sorted example, offered in excellent overall condition.

This vehicle is not held on site with Redline Sportscars and is being advertised on behalf of the owner. All enquiries should therefore be directed directly to the owner. For further information, additional photographs, or to arrange a viewing, please contact Phillip Carder by email at [email protected]

Located in Wiltshire
